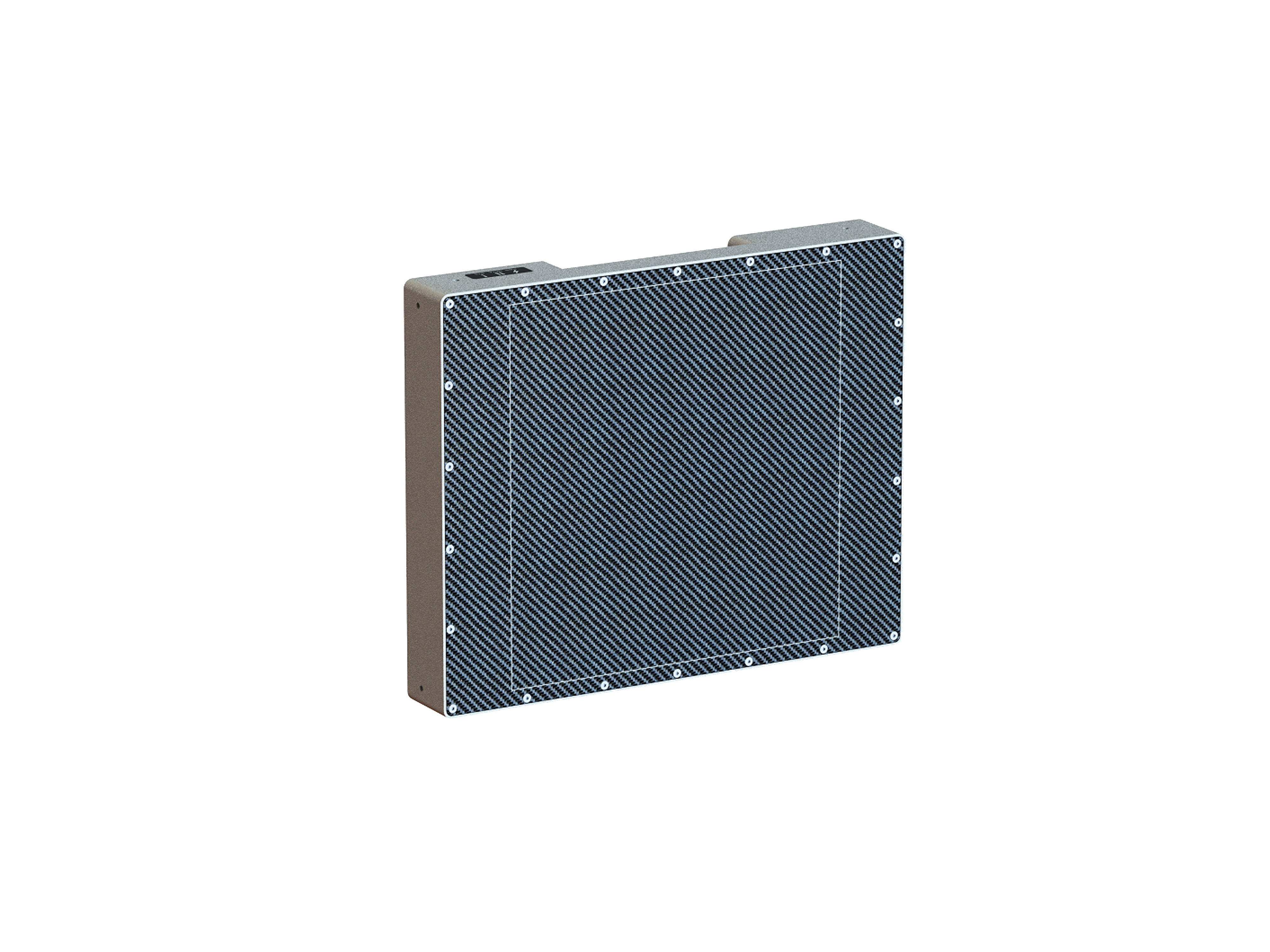

X-Ray Dynamic Flat Panel Detector
The Pheda3030 series X-ray Dynamic flat detector (hereinafter referred to as detector) is d on advanced CMOS imaging technology, with a pixel size of 100 microns, and is a highly sensitive X-ray flat detector with high resolution and low
noise. With excellent sensitivity and signal-to-noise ratio, it still provides high image quality at low dose scenes.
Suitable for a variety of industrial non-destructive testing applications, such as electronic parts testing, micro CT, lithium battery testing, casting parts testing, automotive, aerospace manufacturing quality control.
noise. With excellent sensitivity and signal-to-noise ratio, it still provides high image quality at low dose scenes.
Suitable for a variety of industrial non-destructive testing applications, such as electronic parts testing, micro CT, lithium battery testing, casting parts testing, automotive, aerospace manufacturing quality control.
Product Features
100μm pixel size
3000×3000 pixel matrix
Applications
- Lithium battery inspection
- PCBA inspection
- Rapid CT
Specfication
Transducers
Type
CMOS
Pixel size
100μm
Pixel matrix
3000×3000
Effective area
300×300mm²
Scintillator
CsI
Energy Range
40kV～160kV
Function
Acquisition mode
Continuous/Synchronous
Trig mode
Internal/External
ROI
Programmable side and location
Other
Power supply
DC24V±10%
Product Comparison
Comparison
| Model | Type | Pixel size | Pixel matrix | Effective area | Rate | Scintillator | Irradiation lifetime | Energy Range | Acquisition mode | Trig mode | ROI | Interface | Power supply | Consumption | Usage environment | Storage environment | Weight | External dimensions(W×L×H) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pheda1613D | a-Si(TFT) | 125μm | 1274×1024 | 160×128mm²（6×5in） | CsI | 20kGy | 40kV~230kV | 连续触发/触发模式 | 内触发/外触发 | 自定义任意尺寸 | RJ45 (以太网协议接口) | DC24V±10% | ≤12W | +5ºC~+35ºC | -20ºC~+60ºC | ||||
| Pheda1412-5G | CMOS | 100µm | 1404×1204 | 140.4×120.4mm² | CsI | 20kGy | 40kV～160kV | 连续触发/触发模式 | 内触发/外触发 | 自定义任意尺寸 | RJ45 (以太网协议接口) | DC12V±10% | ≤15W | +10ºC~+40ºC | -20ºC~+60ºC | ||||
| Pheda1512 | CMOS | 100µm | 1440×1120 | 144.0×112.0mm² | CsI/GOS | 20kGy | 40kV～160kV | 连续触发/触发模式 | 内触发/外触发 | 自定义任意尺寸 | RJ45 (以太网协议接口) | DC12V±10% | ≤10W | +10ºC~+40ºC | -20ºC~+60ºC | ||||
| Pheda1412 | CMOS | 100µm | 1404×1204 | 140.4×120.4mm² | CsI/GOS | 20kGy | 40kV～160kV | 连续触发/触发模式 | 内触发/外触发 | 自定义任意尺寸 | RJ45 (以太网协议接口) | DC12V±10% | ≤10W | +10ºC~+40ºC | -20ºC~+60ºC | ||||
| Pheda0606A | CMOS | 49.5μm | 1172×1260 | 58.0×62.4 mm2 | CsI | 10kGy | 40kV~160kV | 连续触发/触发模式 | 内触发/外触发 | 自定义任意尺寸 | RJ45（以太网协议接口） | DC12V±10% | ≤4W | +10ºC~+40ºC | -20ºC~+55ºC | ||||
| Pheda1313 | CMOS | 100µm | 1280×1280 | 128.0×128.0mm² | CsI/GOS | 20kGy | 40kV~160kV | 连续触发/触发模式 | 内触发/外触发 | 自定义任意尺寸 | RJ45 (以太网协议接口) | DC12V±10% | ≤10W | +10ºC~+40ºC | -20ºC~+60ºC | ||||
| Pheda1215A | CMOS | 49.5μm | 2940×2342 | 145.5×115.9 mm2 | CsI | 10kGy | 40kV~160kV | 连续触发/触发模式 | 内触发/外触发 | 自定义任意尺寸 | RJ45 (以太网协议接口) | DC12V±10% | ≤6W | +10ºC~+40ºC | -20ºC~+60ºC |
